The 22nd CHINA international ADHESIVE and sealant exhibition (CHINA ADHESIVE 2019) is held in Shanghai new international expo center on 18-20 September 2019. The booth of Shanghai NOVA engineering technology development co., ltd. is booth 5A 102 in hall N5. This exhibition is the world's largest, the most influential, the strongest international adhesives, sealants as the theme of the professional exhibition. Top 100 brands from more than 30 countries and regions participated in the exhibition. It is a place where technology providers and end users meet, communicate, improve, and create value together.

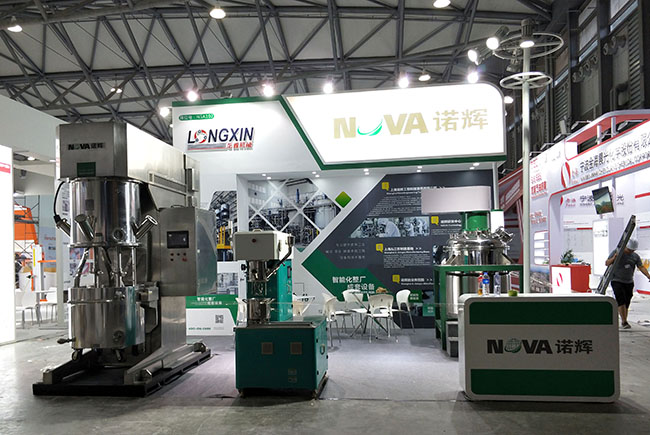

The booth of Shanghai NOVA engineering technology development co., LTD is booth 5A 102 in hall N5, which is located at the entrance of door 6 and entrance of entrance hall. Shanghai NOVA participated in the 21st international adhesives exhibition in the same location in 2018 last year. The location is superior and belongs to the interchange of human flow.During the exhibition, customers from all over the world came to Shanghai Nova consulting desk for detailed inquiries.

Shanghai NOVA specialized in providing fluid transport, mixing, grinding, emulsification and intelligent whole plant complete set of equipment. On the exhibition, NOVA displayed 3 sets of equipment. They are 200L double planet mixer, 2L lab planet mixer and 500L Double-layer coaxial dispersion agitator:

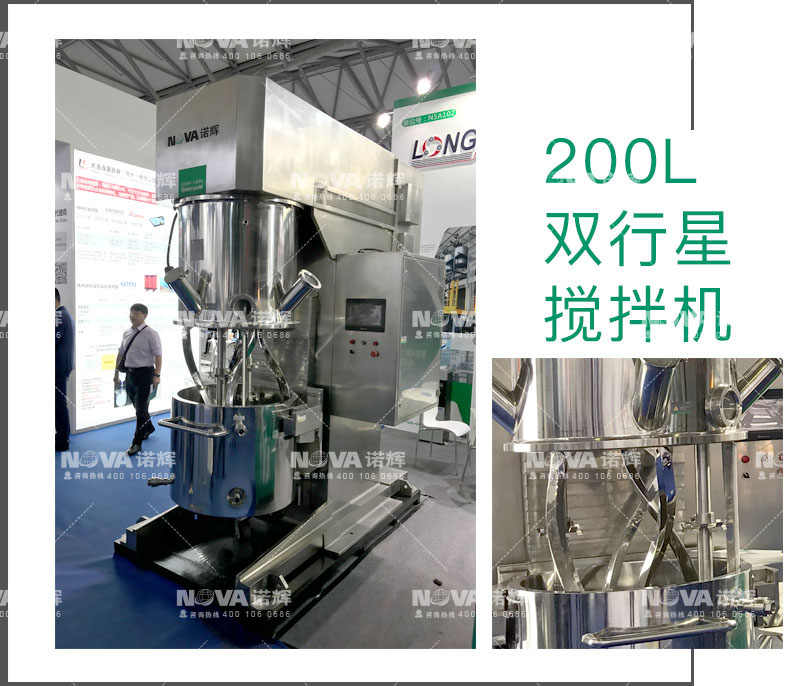

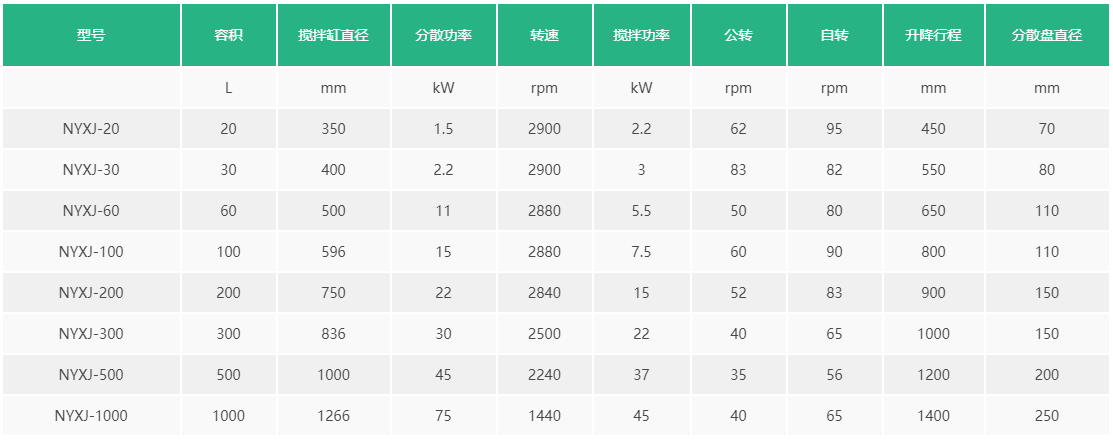

200L double planet mixer

The mixer is equipped with a low speed dispersion unit and a high speed dispersion unit. High-speed dispersion unit complete revolution with the planet frame and complete rotation, which causes the material to undergo intense shear and dispersion mixing. The dispersing parts are divided into single dispersing shaft and double dispersing shaft. Customers can choose according to their needs. The equipment can be vacuumed, heated and cooled. Speed can be adjusted according to the situation. Equipment matching press can discharge the material more conveniently.

Product features:

1. The soft seal between the mechanical seal and the body of the kettle enables the material to operate under vacuum.

2. The body can be heated by electricity, steam, water and oil. The unique temperature detection device on the drive shaft ensures that the temperature error of the material is less than ±1℃. The cooling can be realized by the jacket, the bottom jacket, the inner coil of the jacket and the guide plate.

3. The inner wall of the kettle is finished by large vertical lathe and is automatically polished by a large polishing machine. It makes sure that the movable scraper on the planetary shelf completely removes the material on the inner wall of the kettle while rotating.

4. The stirring OARS in the kettle completes revolution while rotating, which allows material to flow adequately. Thus the mixing effect can be achieved in a very short time.

5. The revolution and rotation of the stirred slurry in the kettle are regulated by frequency conversion. Different speed can be chosen according to different process and different viscosity.

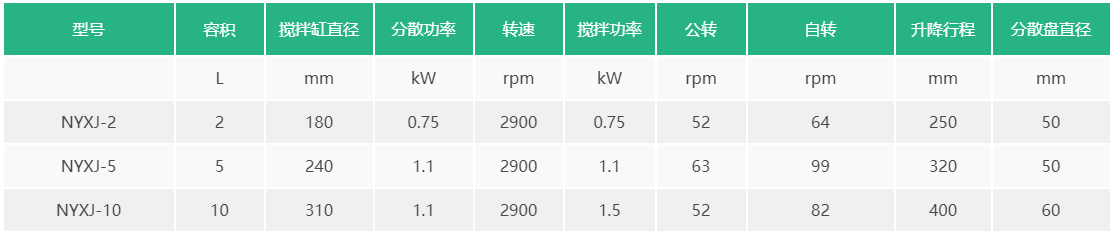

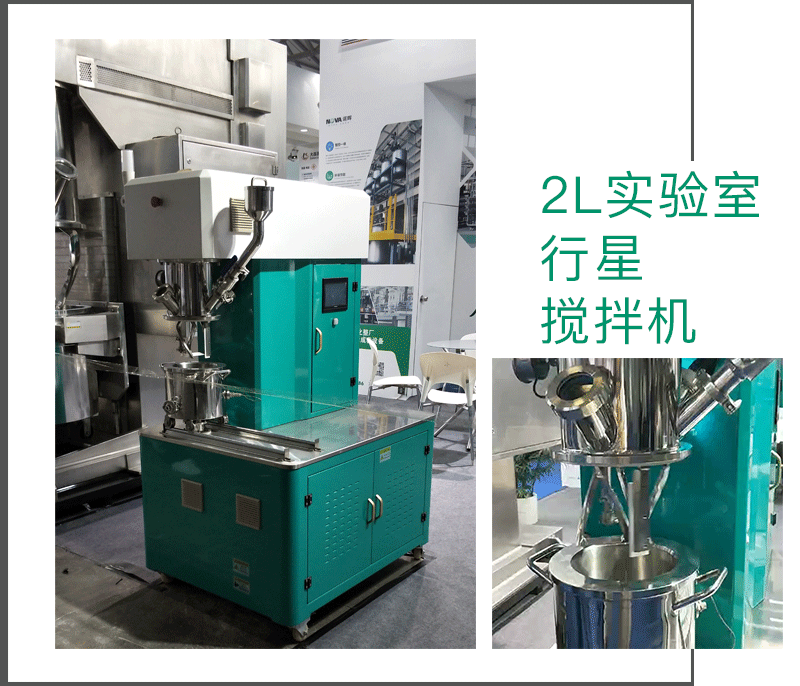

2L lab planet mixer

2L laboratory planet mixer is a new product developed independently by nova in combination with the strong demand of customers in the last exhibition. It is a new and efficient mixing equipment developed for universities, research institutes and factory laboratories. The laboratory planet mixer consists of a low speed mixer and a high speed distributor. It has good effect of mixing, reaction, dispersion and dissolution, which is suitable for dispersion and mixing for solid–liquid and liquid-liquid. Because of its great output torque, it is especially suitable for viscosity products. The equipment has the function of wall hanging and bottom scraping. The equipment is equipped with extrusion device and slide track to realize the integration of stirring and discharging.

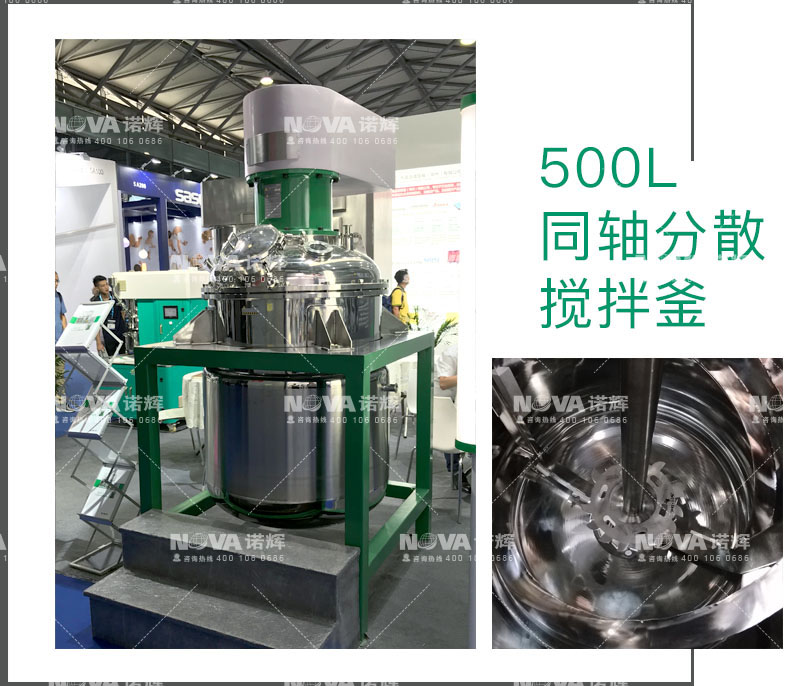

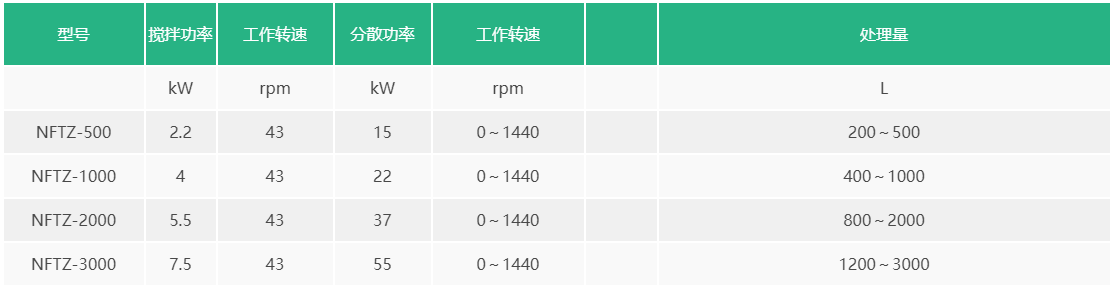

500L coaxial dispersion agitator:

The kettle mixer has the function of stirring and mixing for liquid-liquid and powder-liquid. The agitator blades are driven by the power unit and rotate in a fixed direction. In the process of rotation, it drives the material to do axial and radial rotation and the material can be dissolved and mixed quickly. The equipment has dispersion, emulsification, heating, cooling and other functions to meet the needs of different production processes. The equipment can run for a long time. Mixing forms can be customized according to different technological requirements, such as paddle type, anchor type, frame type (with hanging wall), screw type, etc.

Product features:

1. High mixing efficiency and good product quality.

2. It can be disassembled quickly and moved easily.

3. It can be configured according to the needs of high-speed dispersion machine, emulsifier, mixer, to meet the needs of different processes.

4. It can customize various types of non-standard products, such as explosion-proof type, closed vacuum type, with scraping wall type, multi-function type.

Shanghai NOVA treats every customer who comes to consult seriously and understands the needs of customers seriously. We have our own production base in baoshan, Shanghai and changzhou, Jiangsu.  From the early engineering design to the late construction debugging, we have more than 10 years of professionals responsible for every step. Our technology and service are first-class. Shanghai nova always adhere to the innovation, safety, environmental protection, energy saving, high-performance product management philosophy. We look forward to being your partner.
