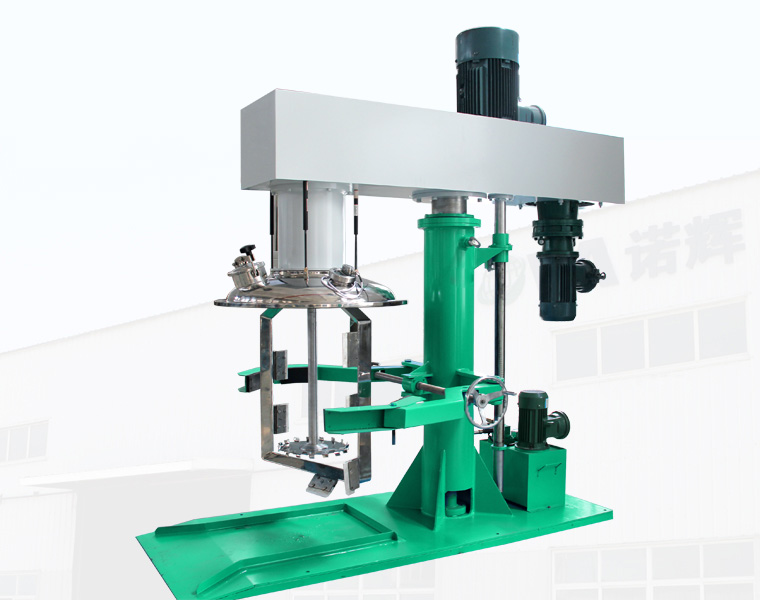

Coaxial dispersion mixer is a functional machine developed based on the high-speed disperser. A closed lid, with spring seal ring mounted in a milling groove of the cover flange, is completely closed with tank and ensures no air leakage under vacuum operation surroundings. It shows excellent performance during special dispersing condition such as vacuum defoaming, vacuum charging, inert gases protection and etc.

Product features:
1. Variable frequency speed regulation, operating easily;
2. Hydraulic lifting system, stable operation;
3. The closed type bucket cover effectively avoids the solvent volatilization; The view mirror and the searchlight can observe the mixing state.

    Sanitary manhole can be cleaned and add materials;
4. It can be made as a floor type or platform type and the cylinder body can be designed as movable and fixed type.

The dispersing disk is running at high speed so that the material is in a circular flow, resulting in a strong vortex, which is spiraling downward to the bottom of the vortex. The particles have a strong shear impact and friction to achieve rapid dispersion and dissolution. The PTFE scraper is fitted to the wall of the barrel to be rotated and swab to the wall of the barrel, which accelerates the material circulation and improves the efficiency of scattered. Through the hydraulic pump driving hydraulic plunger lift, it drives the lifting of the transmission mechanism and the working party.

It is applicable to all kinds of slurry, such as latex paint, industrial paint, water-based ink and colorant, lithium battery paste, etc.
