Extruder
Product Classification
Field of Application
others
Adhesive
Ink/Dye
Product Introduction

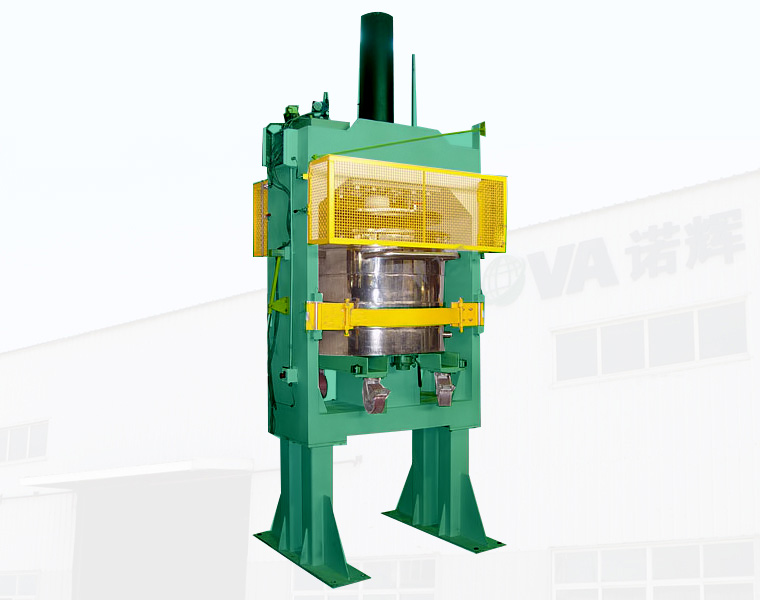

The extruder is generally used with the container so that the high viscosity material can be emptied from the container.Then we can measure, distribute and fill.The height of pressure plate can be adjusted. There are two types that can be selected between pneumatic and hydraulic. The discharging position can be connected with the metering device to realize the quantitative material, and the way to discharge marteial can be selected up or down.
Technical Parameter
| Model | Disk diameter | Pressure | Design Pressure | Extrusion stroke | Cylinder diameter | Lift |
| mm | kg/cm2 | T | mm | mm | mm | |
| NNJC-2 | 180 | 12 | 3.1 | 250 | ||
| NNJC-5 | 240 | 12 | 5.4 | 350 | ||
| NNJC-10 | 310 | 12 | 9.1 | 400 | ||
| NNJC-20 | 350 | 12 | 11.5 | 450 | ||
| NNJC-30 | 400 | 12 | 15.1 | 500 | 80 | 200 |
| NYJC-60 | 500 | 12 | 23.6 | 600 | 100 | 300 |
| NYJC-100 | 596 | 12 | 33.5 | 700 | 120 | 300 |
| NYJC-200 | 750 | 12 | 53.0 | 850 | 120 | 800 |
| NYJC-300 | 836 | 12 | 65.8 | 1000 | 140 | 1000 |
| NYJC-500 | 1000 | 12 | 94.2 | 1200 | 160 | 1200 |
| NYJC-1000 | 1266 | 12 | 151.0 | 1400 | 180 | 1200 |
Product Application
It is suitable for pigment, ink, adhesive, silica gel, putty and etc.
