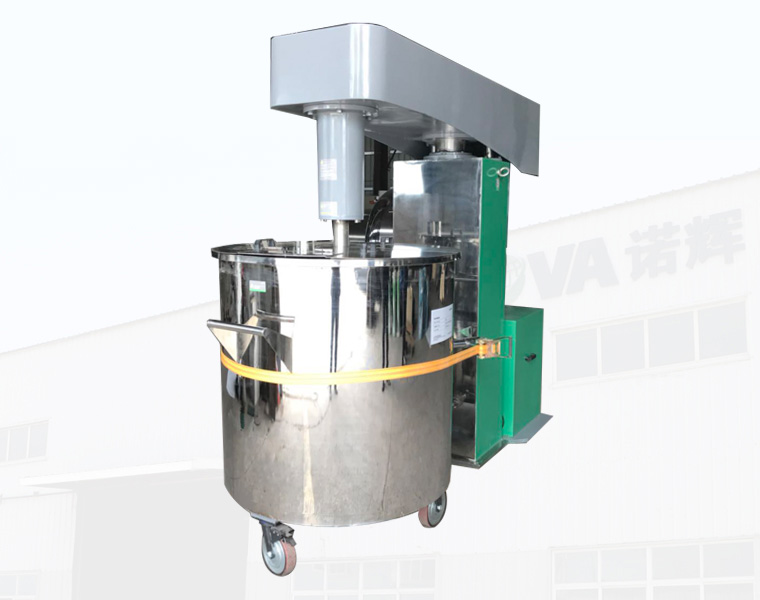

High-speed Disperser(Hydraulic Lifting)

Field of Application

others

Ink/Dye

Lubricating oil

Resin/Promoter

Essence and Perfume

Pesticide

Food additive

Coating

Product Introduction

It mainly focuses on shattering, dispering, emusifying and mixing different viscosity of slurry liquid. Through the high speed of zigzag dispersion disc up and down which forms strong shear on materials, it will achieve the function of rapid mixing and dispersion.


Product features:
1. This machine is suitable for industrial production;
2. Hydraulic lifting system is stable and convenient; structure is strong and durable;
3. It can customize airtight and explosion-proof functions;
4. Optional landing or platform installation;
5. It can be customized according to customer's requirements.

Working Principle

The solid solution is dispersed, wetted, depolymerized and stabilized in high speed in the container. The rotor fluid has a rolling ring flow, which results in a strong vortex, and the particles on the surface of the blades are spirally downward to the bottom of the vortex. The turbulent region was formed at the edge of the scattered disk 2.5 to 5mm. The slurry and particles were subjected to intense shear and shock. Two beams are formed outside the region, and the pulp is fully circulated and turned. The fluid at the bottom of the disperser is laminar flow, and the slurry layer of different flow rate disperses each other.

Technical Parameter

ModelPowerSpeedLiftThroughputDiameterSizeWeight

kWrpmmmLmmmmkg
NYFS-2.22.2144060050~1501501300×800×1500400
NYFS-44144060050~2002001600×800×1850450
NYFS-5.55.5144080080~2502001850×800×1850600
NYFS-7.57.51440800100~3002501850×800×1850700
NYFS-11111440800100~4002501850×800×1850750
NYFS-15151440800150~5003001850×800×1850800
NYFS-18.518.514401100200~8003002150×900×21001000
NYFS-222214401100200~10003002150×900×21001100
NYFS-303014401100300~15003502150×900×21001200
NYFS-373714401300400~20004002550×1000×24501300
NYFS-454514401300500~25004502550×1000×24501400
NYFS-555514401300600~30004502700×1200×28001500
NYFS-75759601500800~40005003200×1200×32003000
NYFS-909096016001000~50005503400×1200×34003500
NYFS-11011096018001000~60005503600×1500×36004000
NYFS-13213296020001500~80006003800×1500×38004500


Product Application

It is suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, dye, printing ink, paint, cosmetics, resin, adhesive, latex, pharmaceutical, oil, powder,etc.
