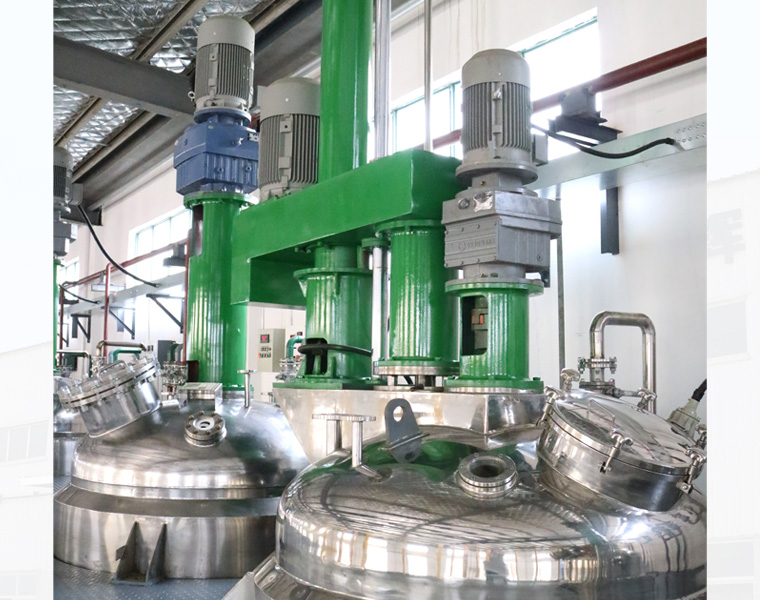

Cylinder Type Disperser(Hydraulic Lifting)

Field of Application

others

Adhesive

Ink/Dye

Coating

Product Introduction

Cylinder type disperser has the functions of mixing and stirring liquid-liquid or powder-liquid.It belongs to mass production.And it can be supplemented by dispersing, emulsifying, heating and cooling to meet the needs of different production processes. It can be operated for a long time, with low noise, simple operation and strong adaptability. It is ideal for stirring, dispersing and other functions.


Product features:

1. Place on platform;

2. The dispersible disk can be easily disassembled. Bolts are easy to move and remove;

3. Customizable explosion-proof type, sealed vacuum type, scraper wall type, multi-function, SS304\SS316L stainless steel etc.



Working Principle

Through the high speed of the dispersing disk, the material presented as annular flow results in a strong vortex, which is spiraling downward to the bottom of the vortex. Strong shear collision and friction between particles achieves the function of rapid dispersion, dissolving, mixing and emulsifying. Through the hydraulic pump driving hydraulic plunger lift, it drives the mechanism, working group, airtight cover lifting; In the working state, the barrel lid and the cylinder realize the absolute density.It matches the vacuum system and the it realizes the vacuum dispersion.

Technical Parameter

ModelPowerSpeedLiftThroughputDiameter

kWrpmmmLmm
NYFS-373714401500400~2000400
NYFS-454514401500500~2500450
NYFS-555514401800600~3000450
NYFS-75759601800800~4000500
NYFS-909096020001000~5000550
NYFS-11011096022001000~6000550
NYFS-13213296025001500~8000600


Product Application

It is applicable to all kinds of slurry, such as latex paint, industrial paint, water-based ink and colorant, lithium battery paste, etc.
