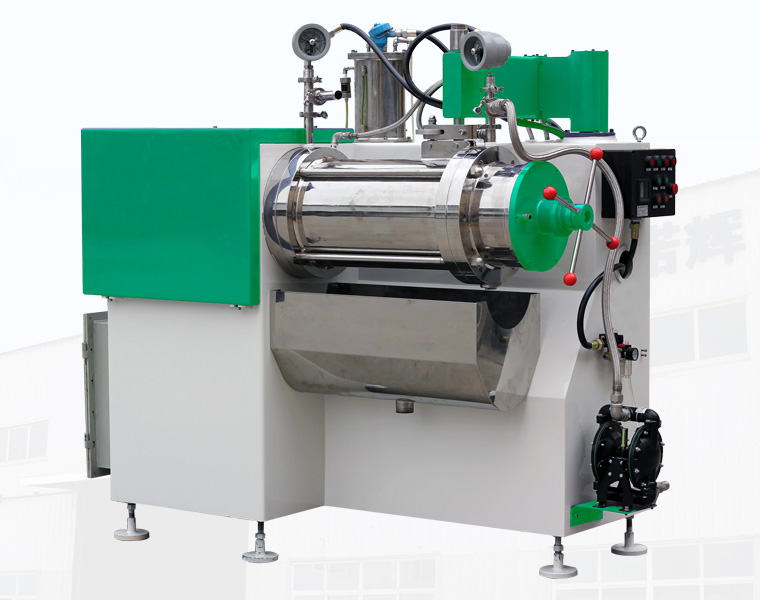

Rod - pin Horizontal Sand Mill
Rod - pin Horizontal Sand Mill
others
Ink/Dye
Rod - pin horizontal sand mill is an ultra-fine dispersion and nano-grade grinding machine for waterborne, solvent materials.
Product features:
1. Stable structure, exquisite design, simple operation;
2. It is more convenient to clean, change color and replace grinding beads;
3. No residue design, and it better solves the problem of the discharge and residue of materials;
4. Hard alloy grinding bar, through reasonable layout, high grinding efficiency;
5. The inner rotor and outer jacket are double cooled, and the cooling effect is good;
6. High wear-resistant alloy lining, non-polluting products;
7. The grinding medium is small and the running cost is low.
Using feeding pump, the solid - liquid mixed material input cylinder which is processed by pre-dispersing and wetting. Solid - liquid phase materials with the grinding media in cylinder is high-speed disperser agitation, so that the material of solid particles and grinding media mutual produce more intense collision, friction, shear effect.It achieves the goal of accelerating grinding fine grain and dispersive aggregate. After the abrasive dispersion, the material separated by the dynamic separator and the grinding medium output from the discharge pipe. Horizontal sand mill is especially suitable for the product with high viscosity and high particle size.
Model | Power | Speed | Volume | Throughput | Cooling Water | Max Liner Speed | Effictive Volume |
kW | rpm | L | L/h | L/h | m/s | L | |
NBSM-20 | 22 | 900 | 20 | 150~300 | 1000 | 11 | 19 |
NBSM-30 | 30 | 900 | 30 | 200~600 | 1800 | 11 | 30 |
NBSM-50 | 45 | 850 | 50 | 300~1000 | 3000 | 11 | 48 |
NBSM-100 | 90 | 850 | 100 | 500~2000 | 5000 | 11 | 100 |
It is widely used in industrial paint, low viscosity ink, water-based paint, water-based ink, pigment, etc.
