Product Introduction

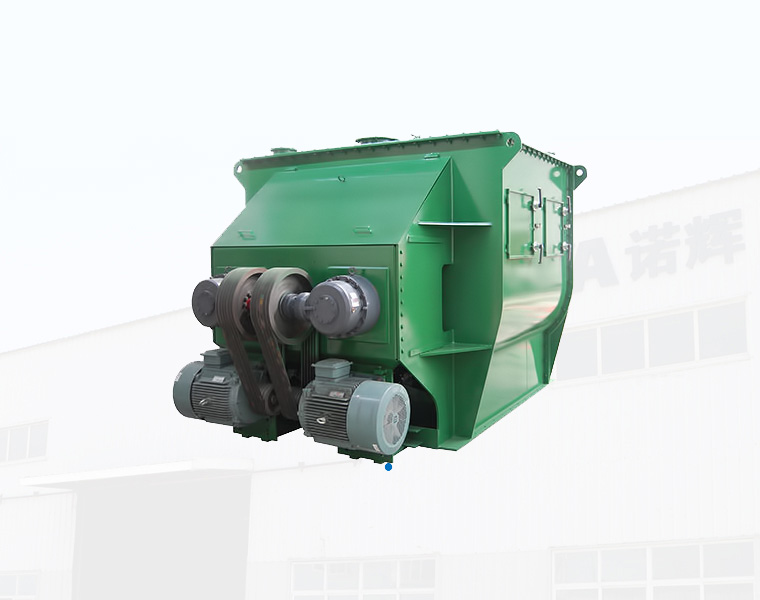

Non-gravity blender is widely used in the field of chemical, biological, building materials. It can be used in blending powder, grain, fiber and other materials. It has strong mixing force and can realize rapid mixing at a short time. It especially is good at mixing the materials with relatively large ph


Working Principle

Non-gravity blender equips two parallel oar shafts which rotate outward in the opposite direction at the same time. Each shaft carries a cross blade. Under the synchronous action of the driving device, the operation trajectories of the two shafts are intersection and malocclusion. The driving device drives the propeller shaft to rotate quickly. The rotating blades produce centrifugal force to effectively drop the material into the upper part of the tube. When the material reaches the highest point of the parabola(The highest point of a parabola is also known as the condition of instantaneous weightlessness), it falls off. Then the material is driven away by the blade and reciprocating mixed in the tube. It is mixed, cut and separated by the meshing space of the two shafts, resulting in the fast mixing of the materials.

Technical Parameter

ModelPowerSpeedVolumeCoefficientSizeWeight

kWrpmL
mmkg
NWSH-502.250500.4~0.6900×550×530230
NWSH-1003501000.4~0.61800×470×750320
NWSH-3004503000.4~0.62450×650×1100700
NWSH-5007.5505000.4~0.62700×800×1250980
NWSH-1000115010000.4~0.63200×990×13501800
NWSH-2000154720000.4~0.63850×1200×17502100
NWSH-300018.54330000.4~0.63750×1510×20003200
NWSH-4000304340000.4~0.64100×1530×21004000
NWSH-5000373350000.4~0.65250×1530×23004600
NWSH-6000453360000.4~0.65700×1600×23456200
NWSH-8000452880000.4~0.65950×1820×25607200
NWSH-100005528100000.4~0.66420×1850×27807800
NWSH-120005528120000.4~0.66850×2000×30009800
NWSH-150005528150000.4~0.67250×2170×315010000
NWSH-180007528180000.4~0.67550×2700×323011000
NWSH-200009028200000.4~0.67600×2370×337514500


Product Application

It is widely used in the field of electronic battery, building mortar, environmental protection industry, mining and agriculture.
