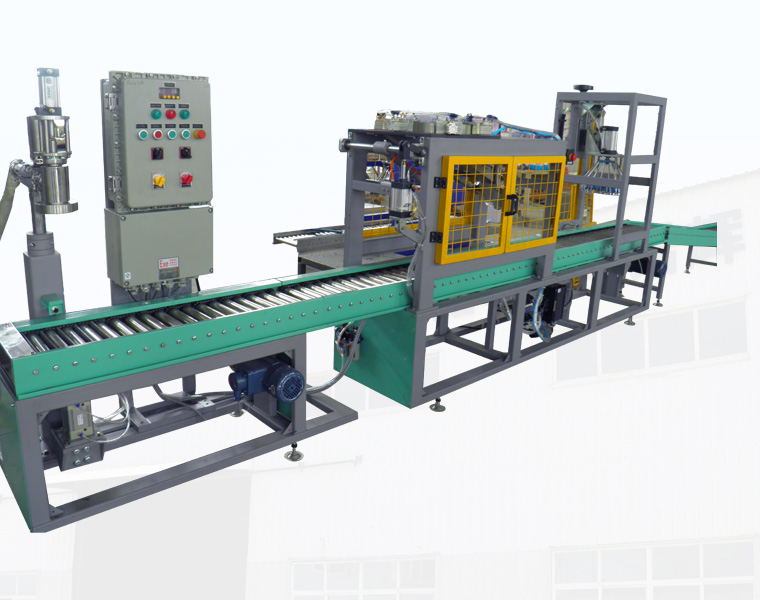

The liquid filling machine distributes bulk liquid materials to various containers, iron drums or plastic buckets in a precise weight manner. It is used for automatic quantitative filling of 5L ~ 30L barrels. It is widely used in chemical industry, pesticide and other liquid material related industries and also used in coating, paint, printing ink, adhesive, curing agent, resin, dye, detergent, oil, glycerin, lubricating oil, edible oil, essence, solvents, additives, food additives, pesticides and other hazardous chemical products and other products.

Product features:
Product set: Storage of up to 10 different products’ weights and related filling parameters
Data statistics: It contains accumulative weight and accumulative frequency. It can be connected with computer to realize data management (optional).
Multistage filling: The filling can be divided into the type of two parts (fast/slow) or three parts(slow/fast/slow), greatly improving the filling accuracy.
Throttle device: It effectively prevents spatter caused by high initial pressure of pump when filling low viscosity products.
Drip protection: The high viscosity spray gun solves the leakage phenomenon of high viscosity product filling, and the low viscosity spray gun is equipped with automatic drip cup and gas cap device.
Bump barrels protection: It avoids the damage caused by the barrel was not aligned when the gun dropped.
Rapid change: The interface in the pipeline connection adopts the quick interface, which is convenient to replace spray gun.
Filling nozzle: Different filling nozzles can be changed conveniently according to different diameter of container.
Automatical hole drilling: There are many eccentric holes in the filling port of the round container. This technology can solve the inconvenience of manual hole drilling.
Filling mode: The filling mode design can be used in filling on the barrel hole, filling in the barrel hole and filling under the liquid. The user can control the speed of the spray gun to be suitable for the products of different foam levels (optional).
Easy operation: The filling system is easy to learn and operate.
Flexible design: we provide various kinds of equipments and accessories according to the material’s characteristics at the scene and container’s size.
Easy installation: As long as the device is fixed on the ground with the expansion bolt and connects the material pipe, power source and air source, the filling can be started.

1. It uses the equipment which arranges and gets barrels fully automatically to speed up the delivery.
2. Automatic filling device has automatic meter. According to the preset standard, the material who’s quantities sets by the filling nozzle can be directly filled into the packaging bucket. The whole process is accurate and fast, without causing waste of materials, and will not cause environmental pollution. After loaded bucket, it will be transported to the next link through the power track.
3. It automatically arranges lid, upper cover,and seals off one by one. The filling barrel is accurately delivered to the automatic lid machine. Through the mechanical hand, the lid is placed on top of the filling barrel. Automatic sealing opportunity immediately cooperates with the action to squeeze the lid accurately, sealing the filling barrel.
4. Automatic stacking, placing pallets. The filling drum packaged by sealing is passed to the automatic stacker. The automatic stacker, through the professional manipulator, accurately absorbs and places the filled container into the set tray. When the number of paint buckets in the tray reaches the specified number, the manipulator will automatically transport the pallet to the designated position.

Oil and chemical raw materials, lubricating oil, grease, paint, ink, paint, glue, asphalt, washing liquid, cleaning agent, etc.
