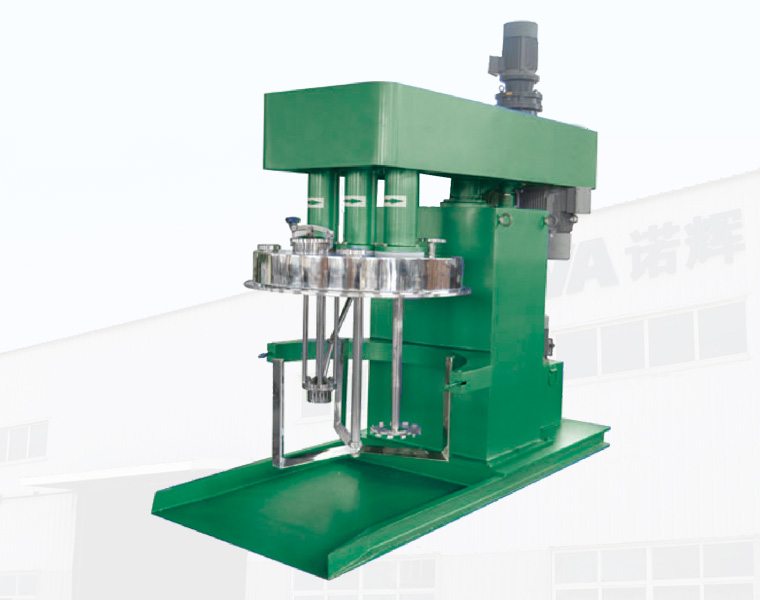

The equipment is a product designed by Nova company with a variety of functions such as dispersion,emulsification and stirring. The product of high viscosity and thixotropy material has a good adaptability. It has a variety of optional mixing way, such as anchor, butterfly, frame, etc. Dispersion/emulsification and stirring can be performed simultaneously,and non-standard customization can be performed according to customer's material characteristics and production process.

The paddle blade is driven by the power unit and rotated in a fixed direction.During the rotation, the material is driven to do axial rotation and radial rotation. The material in the mixer has axial movement and circular motion. Therefore, there are several stirring forms such as shear stirring and diffusion stirring, which is able to stir and mix materials quickly and effectively. Through the high speed of the dispersing disk, the material presented as annular flow results in a strong vortex, which is spiraling downward to the bottom of the vortex. Strong shear collision and friction between particles achieves the function of rapid dispersion and dissolving. The stirring disk produces a good radial force through circumferential motion to accelerate material circulation and improve dispersion efficiency. Precision-engineered stator and rotor match with each other perfectly.High-speed rotation motor drives the rotor to rotate at high speed, which generates vacuum condition between the stator and rotor. So materials are sucked into the chamber from the top of the stator, rotor and also from the bottom. Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor. After processed, the materials are flying out and generates strong turbulence under the action of forces from different direction. Stable emulsion is obtained after repeated disaggregation, dispersion, homogenization, shearing for a certain period with help of mature production technology and certain quantity emulsifier. Tri-shaft mixer drives hydraulic plunger lift by hydraulic pump to drive the whole drive mechanism and working group up and down.

It is suitable for dispersion, emulsification and mixing of paint, coating, putty, adhesive, ink, lithium battery paste, glue etc.
