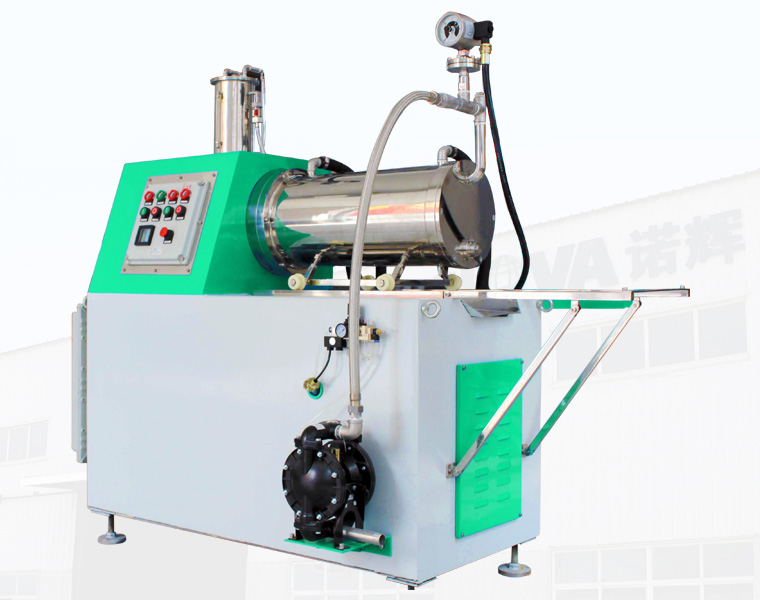

Nova’s horizontal sand mill is nano-scale ceramic pollution-free superfine grinding equipment.It uses advanced multiple sets of turbine distributor to make multi-channel input kinetic energy to achieve a very narrow particle size distribution possible. The grinding fineness can achieve 1 um - 100 nm. sander disperser parts contacting material are chosen according to the requirements of customers and a shaft (zirconia ceramics, engineering, polyurethane, tungsten carbide, high wear resistant alloy steel and other materials), generally using zirconia ceramics.

The pump will transfer the liquid-solid mixture which has been diluted and stirred into the body. The spindle drives the dispersion turbine to rotate at high speed and agitate the grinding medium (glass ball, porcelain ball, zirconia bead, alumina bead, etc.) to make it produce swirl and radial movement. Thus, the product is forced to grind and disperse to achieve the specified fineness. At the same time, the work pressure and working temperature are automatically controlled by the electric contact pressure gauge and the electric contact thermometer to ensure the safe operation of the whole machine. Meanwhile, the product and grinding medium are separated by the dynamic material clearance. It is suitable for large flow, medium and high viscosity water-based solvent’s ultra-fine grinding and dispersion.

It is widely used in industrial paint, low viscosity ink, water-based paint, water-based ink, pigment, etc.
