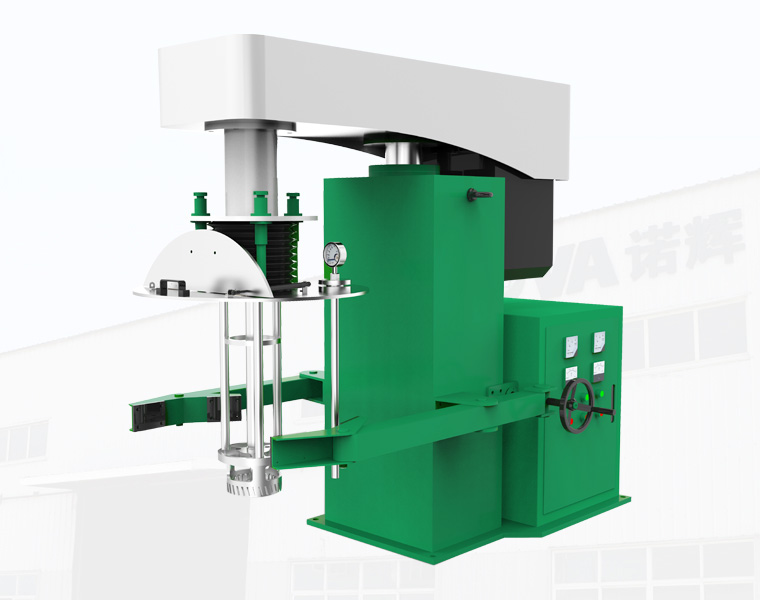

High-shear Emulsifier(Hydraulic Lifting) is a batch type machine designed for big volume in industrial production. Its working capacity is generally between 50-5000L. It narrows the particle size of Liquid-liquid and liquid-solid materials through external mechanical force and distributes one phase materials into another phase or many other phases evenly to realize good homogenizing, dispersing and emulsifying result. As a result, the materials become stable emulsion. The emulsifier is batch production, the working head adopt the new type of dual direction suction structure. The equipment can adopted to wide range viscosity and temperature, and can also customized ex-proof product.

Precision-engineered stator and rotor match with each other perfectly. High-speed rotation motor drives the rotor to rotate at high speed, which generates vacuum condition between the stator and rotor. So materials are sucked into the chamber from the top of the stator &rotor and also from the bottom. Rotor driven by the strong kinetic energy creates high linear speed, which puts the materials under comprehensive action of strong crushing, tearing, centrifugal extrusion, hydraulic friction etc between the precision-engineered gap of the stator and rotor. After processed, the materials are flying out and generates strong turbulence under the action of forces from different direction. Stable emulsion is obtained after repeated disaggregation, dispersion, homogenization, shearing for a certain period with help of mature production technology and certain quantity emulsifier. Man can control the oil pump to drive the hydraulic lifting. Lifting frame drive the transmission mechanism and working group lifting, it is easy to operate and steady lifting.

It is widely used for emulsification, homogeneity and dispersion of materials in coatings, inks, textile auxiliaries, biology, medicine, lubricants, pesticides, cosmetics and pharmaceuticals.
