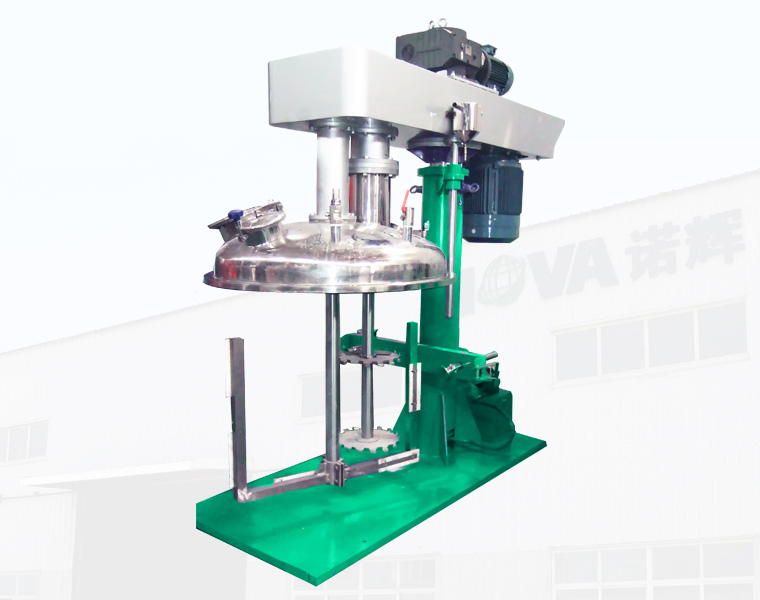

The scraper type disperser is a kind of product which has the function of dispersing and scraping. It is developed on the basis of single-axis dispersing machine. In the process of dispersion, the scraper rotates along the barrel wall to form a certain radial mixing effect. At the same time, the scraper made of PTFE can scrape the material on the bucket wall, which has good adaptability to medium and high viscosity and thixotropic materials. The final product is clean, and the barrel is easy to clean.

Product features:
1. Disperse linear speed more than 20m/s, high dispersion efficiency;
2. Variable frequency speed regulation, operating easily;
3. The blade’s design is very good to solve the problem of material hanging wall. It is clean and easy to maintain.
4. We can customize various types of non-standard products, such as explosion-proof type, sealed vacuum type, etc.The quality can be customized as

    SS21\SS316L stainless steel.

The dispersing disk is running at high speed so that the material is in a circular flow, resulting in a strong vortex, which is spiraling downward to the bottom of the vortex. The particles have a strong shear impact and friction to achieve rapid dispersion and dissolution. Frame with scraper wall scrapes the wall, which accelerates the material circulation and improves the efficiency of scattered. Through the hydraulic pump driving hydraulic plunger lift, it drives the lifting of the transmission mechanism and the working party.

It is suitable for dispersion and mixing of materials, such as coating, putty, ink, adhesive and lithium battery.
