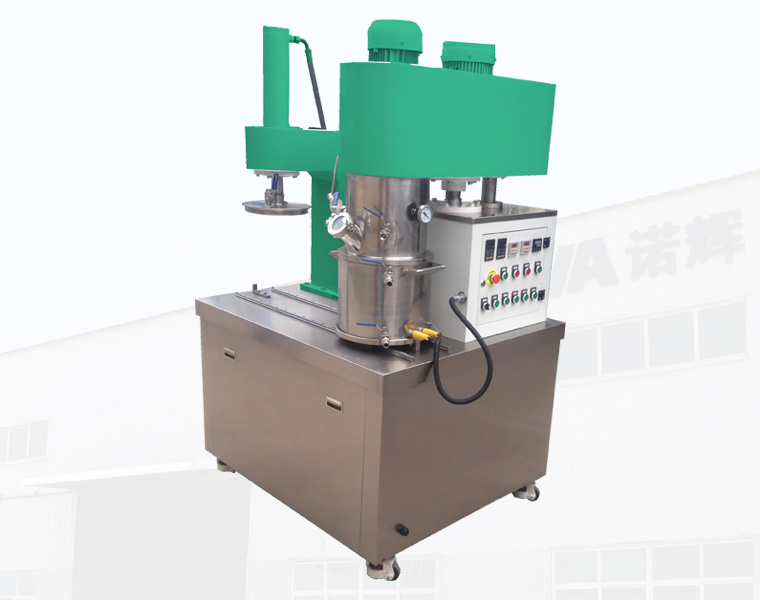

The lab planetary mixer is a new and efficient mixing equipment developed by the company for various universities, research institutes and factory laboratories. Lab planetary mixer is composed of low speed mixer and high speed disperser and has great effect on mixing, reaction, dispersion and dissolution. It is especially suitable for solid - liquid, liquid - liquid dispersion and mixing. Because of its great output torque, it is suitable for the viscosity of larger products, such as adhesive, silica gel, lithium battery slurry, etc. At the same time, the equipment has many advantages of the wall scraping function, no dead angle and no residual. The equipment is equipped with extruding device and sliding track.

The lab planetary mixer is composed of decelerating motor, planetary frame, agitator, scraper, bucket, hydraulic lifting system, hydraulic extrusion system and frame. When the planetary frame is rotated, the stirring shaft and dispersion axis of the box (optional) are driven around the axis of the barrel axis and high-speed autobiographies, so that the material is strong shear, kneading, achieving the goal of fully dispersed and mixed; On the planet rack, there is a scraper that moves with the planetary frame. The wall of the barrel is constantly scraping. The wall of the barrel is refined by the big car, and then polished by automatic polishing machine.It ensures that the movable knife on the planet rack will completely scrape off the material of the barrel wall when rotating, so that the wall of the bucket will not retain the material and improve the mixing effect. After stirring, the extruding system can be moved to the extrusion system to complete the extrusion process.

It is suitable for dispersion, emulsification and mixing of paint, coating, putty, adhesive, ink, lithium battery paste, glue etc.
