Product Classification

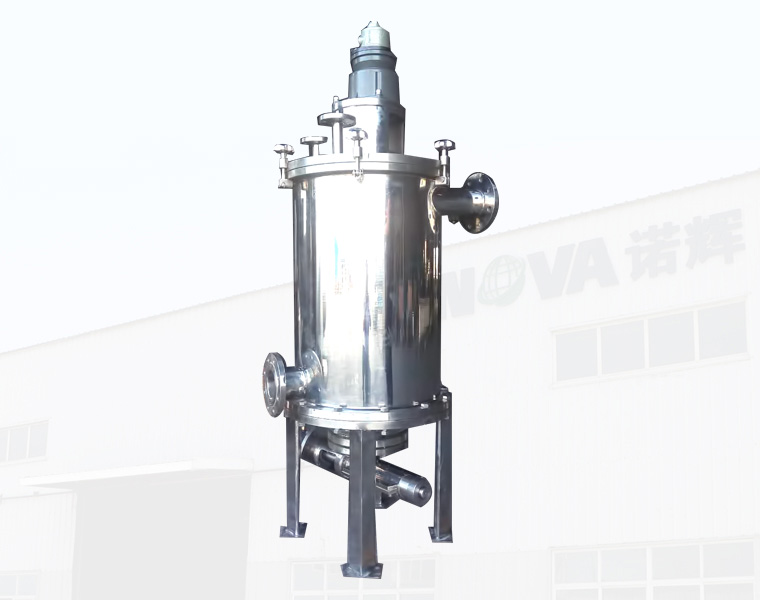

Intelligent Filtering Slag Removal System

Field of Application

others

Product Introduction

The intelligent filtering slag removal system includes a movable platform, a stainless steel strip filter, a pneumatic diaphragm pump, a gas source two-piece, a single gas control valve, and a slag component, which has the function of filtering and removing slag.


Product features:
1. High filtration efficiency;
2. Keep continuous operation;
3. Save manpower;
4. The filter precision range is optional;
5. Environmental protection; eliminate the solid waste from the filter bag and the liquid waste brought by cleaning;
6. Multi - bucket large flow efficient filtration, automatic electrical control system and PLC are optional;
7. Simple structure, easy to disassemble and clean inside;
8. Safe and reliable, stable operation;
9. Reduce production cost, and do not consume disposable materials;
10. The filter residue can be used as combustion energy for secondary recycling.


Working Principle

When materials are imported from the import, the qualified materials are filtered through a metal wedge filter with a large filtration area. The pump sends the material to  the next step for product filling. The scraper equipped on the agitator rotates on the surface of the screen and scrapes off the impurity. The impurities follow the descending liquid into the screw cavity. In the slag removal system, the screw is rotated to extrude dry slag (the extruded slag is continuous solid), and the filtered filtrate is incorporated into the feed inlet through the pump. Then it will realize circulating filtration.
