Product Classification

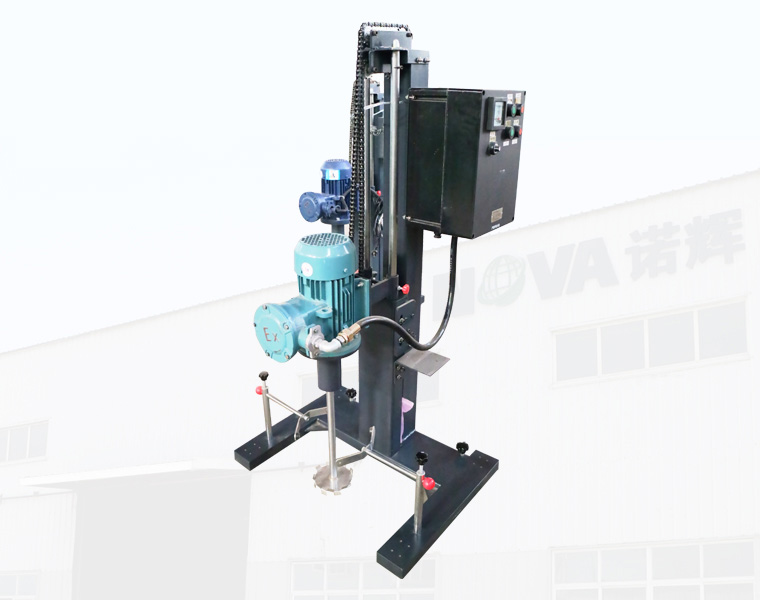

Laboratory Disperser

Field of Application

others

Ink/Dye

Food additive

Coating

Product Introduction

It is widely used in scientific experiment, production simulation and new product development in the laboratory of industrial departments and research institutes.


Product features:
1.It is widely used in scientific experiment, production simulation and new product development in the laboratory of industrial departments and research

   institutes;
2.Digital display speed, manual lift, convenient operation;
3.According to customer's requirements, non-standard custom 304, 316L or spraying can be processed.Customer can customize explosion-proof functions.


Working Principle

The solid solution is dispersed, wetted, depolymerized and stabilized in high speed in the container. The rotor fluid has a rolling ring flow, which results in a strong vortex, and the particles on the surface of the blades are spirally downward to the bottom of the vortex. The turbulent region was formed at the edge of the scattered disk 2.5 to 5mm. The slurry and particles were subjected to intense shear and shock. Two beams are formed outside the region, and the pulp is fully circulated and turned. The fluid at the bottom of the disperser is laminar flow, and the slurry layer of different flow rate disperses each other.

Technical Parameter

ModelPowerSpeedLiftThrpughputDiameterSizeWeight

kWrpmmmLmmmmkg
NYFS-2.22.280005005~20200530×270×110045



Product Application

It is suitable for the dispersion of small quantities of products in coatings, inks, petrochemical, pharmaceutical, food and fine chemical industries. It is widely used in the industrial production of scientific research, new product development and small batch products.
